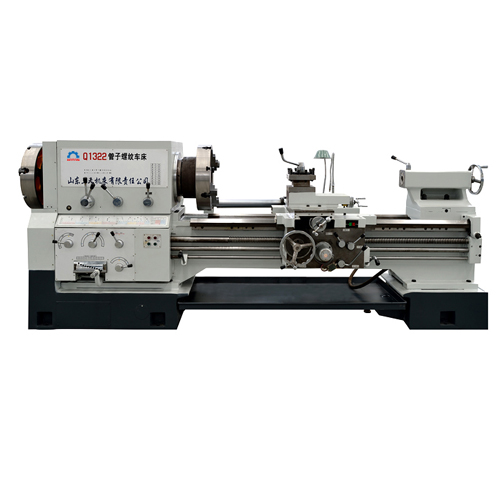

Product Name:
Q1322
No. :
 |
2. It is able to cut both metric and threads without changing the translating gear.
3. The dripping worm in the apron can protect the mechanisms of the lathe automatically.
4. The guide way is hardened and finely finished.
5. The geat power of the machine is competent at heavy load and power cutting.
6. The floor center rest can be moved freely as required by the user.
7. The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.
8. The double 4-jaw chucks offer free clamp of both short and long pipes.
|
SPECIFICATION OF YIMAKE LATHE MACHINE |
|||
|
ITEMS |
UNIT |
Q1322 Pipe Lathe |
|
|
Basic |
Max. Dia. swing over bed |
mm |
Φ630 |
|
Max. Dia. swing over cross slide |
mm |
Φ340 |
|
|
Distance between centers |
mm |
1500 / 3000 |
|
|
Range of threading capacity |
mm |
Φ50-220 |
|
|
Width of bed way |
mm |
550 |
|
|
Main motor |
kw |
11 |
|
|
Coolant pump motor |
kw |
0.125 |
|
|
Spindle |
Spindle bore |
mm |
Φ230 |
|
Spindle speed |
r/min |
12 steps: 24-300 |
|
|
Taper bar |
Max. taper processing |
-- |
1:4 |
|
Max. travel of taper guide bar |
mm |
750 |
|
|
Tool post |
Tool post travel |
mm |
200 |
|
Distance between spindle center and tool post |
mm |
32.5 |
|
|
Size of tool section |
mm |
30×30 |
|
|
Max. rotation angle of tool post |
° |
±60° |
|
|
Leadscrew |
Leadscrew pitch(mm) |
inch |
1/2 |
|
Feed |
Z axis feed |
mm |
26 grade / 0.07-1.33 |
|
X axis feed |
mm |
22 grade / 0.02-0.45 |
|
|
Carriage |
Cross slide travel |
mm |
490 |
|
Carriage rapid traverse speed |
mm/min |
4000 |
|
|
Threading |
Metric thread |
mm |
24 grade / 1-14 |
|
Inch thread |
t.p.i. |
40 grade / 2-28 |
|
|
Tailstock |
Tailstock quill diameter |
mm |
Φ100 |
|
Tailstock quill taper |
mores |
m5# |
|
|
Tailstock quill travel |
mm |
250 |
|
|
Tailstock cross travel |
mm |
±15 |
|
|
Others |
Dimension(L/W/H) |
mm |
3657/5157×1449×1393 |
|
Net weight (kg) |
kg |
4440/5290 |
|
|
Gross weight |
kg |
5200/6300 |
|
|
Accessories |
Tool post |
1 set |
4 position manual turret |
|
Chuck |
2 set |
Φ520 three-jaw manual chuck |
|
|
Taper device |
1 set |
taper guide bar |
|
|
Center rest |
1 set |
Φ300 |
|
|
Rear support bracket |
1 set |
Φ220 |
|
|
Package |
Standard export package |
1 set |
Steel pallet and plastic overclothe |
