Product Name:

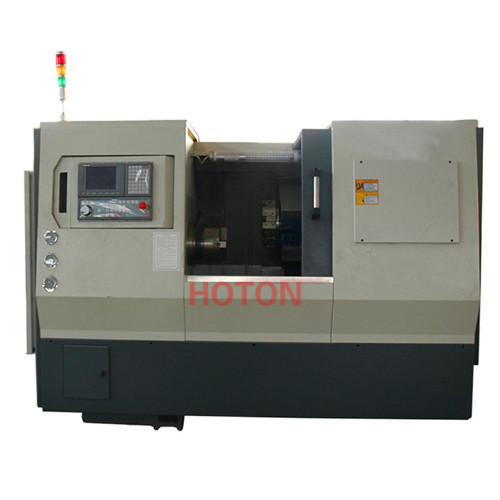

TCK420
No. :
 |
industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also
turn various metric and inch threads etc, with higher efficiency and higher precision in bulk.
|
Model |
|
TCK420 |
|
max. swing over bed |
mm |
420 mm |
|
max. swing over cross slide |
mm |
270mm |
|
max. processing length |
mm |
400mm |
|
X/Z axis travel |
mm |
160/400 mm |
|
spindle nose |
mm |
A2-6 |
|
spindle bore |
mm |
66 |
|
spindle drawing pipe diameter |
mm |
50 |
|
max. spindle speed |
rpm |
3000 |
|
chuck |
inch |
8 |
|
spindle motor power |
kw |
5.5 |
|
X/Z axis position accuracy |
mm |
0.016/0.002mm |
|
X/Z axis repeatability |
mm |
0.006/0.006mm |
|
X/Z axis feed motor torque |
N.m |
5/7.5 |
|
X/Z axis feed motor power |
kw |
1.3/1.88 |
|
X/Z rapid feed speed |
m/min |
12 |
|
tailstock travel |
mm |
350 |
|
tailstock sleeve diameter |
mm |
90 |
|
tailstock taper |
|
MT4# |
|
tool post type |
|
8 station hydraulic magazine |
|
cutting tool shape size |
mm |
20*20 |
|
guide way type |
|
Linear guideay |
|
total power capacity |
kva |
11 |
|
machine dimension |
mm |
2300*1500*1650 |
|
N.W. |
kg |
3000 |
