LM1450A
|
Product Name:
LM1450A
No. :
 |

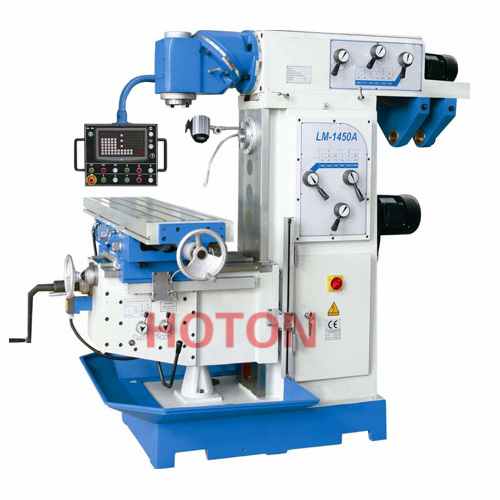

1. LM-1450A universal swivel head milling machine is based on theLM1450,
2. Installation of rotary table 45 degrees,
3. Processing of a wide range, three-axes automatic feeds,
4. Large torque and strong power, 1.5KW,
5. Fast-moving 2000mm/min.
6. Spindle taper is ISO 50.,
2. Installation of rotary table 45 degrees,
3. Processing of a wide range, three-axes automatic feeds,
4. Large torque and strong power, 1.5KW,
5. Fast-moving 2000mm/min.
6. Spindle taper is ISO 50.,
|
Specifications |
LM1450A |
|
Spindle taper |
ISO50 |
|
Difference from spindle axis to guideway(mm) |
505 |
|
Horizontal axis middle height |
0-480 |
|
Table size |
1500*360 |
|
Table travel |
900*400*405 |
|
Main motor |
4kw |
|
Feeding motor |
1.5kw |
|
Spindle speed |
60-1800 |
|
Overall dimensions(mm) |
2000*2000*2250 |
|
N.W/G.W (kg) |
2650/2850 |
