Product Name:

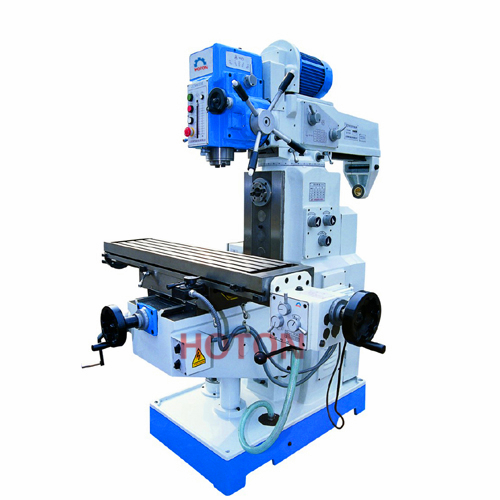

XZ6326
No. :
 |
Spindle can be tapping
Spindle can be forward and reversal
X,Y,Z axis can feed automaticly
Table size 1270*260mm is optional
|
Model |
Unit |
XZ6326 |
|
Table size |
mm |
1120X260 |
|
T slot no./width/distance |
no |
5/14/50 |
|
Max. load of Table |
kg |
200 |
|
table Longitudinal travel(manual/auto) |
mm |
600 |
|
table Cross travel (manual) |
mm |
300 |
|
table Vertical travel(manual) |
mm |
380 |
|
Spindle taper |
|
ISO40 |
|
spindle speed /step -- Vertical |
rpm |
67-2010/12steps |
|
--Horizontal |
rpm |
40-1300/12steps |
|
Max.drilling dia. |
mm |
30 |
|
Max.end milling width |
mm |
125 |
|
Max. vertical milling Dia. |
mm |
25 |
|
Max.tapping dia. |
mm |
M16 |
|
quill travel |
mm |
120 |
|
swivel angle of headstock |
degree |
±45º |
|
vertical spindle axis to column surface |
mm |
220-760 |
|
vertical spindle nose to table surface |
mm |
115-430 |
|
horizontal spindle axis to table surface |
mm |
0-380 |
|
horizontal spindle axis to ram bottom |
mm |
175 |
|
ram travel |
mm |
520 |
|
Longitudinal feed |
mm / min |
24-720/8steps |
|
Longitudinal rapid speed |
mm / min |
1040(X) |
|
automatic spindle feed |
|
0.1/0.15/0.3 |
|
main motor |
kw |
1.5/2.2(V),2.2(H) |
|
feed motor |
kw |
0.37(X) |
