Product Name:

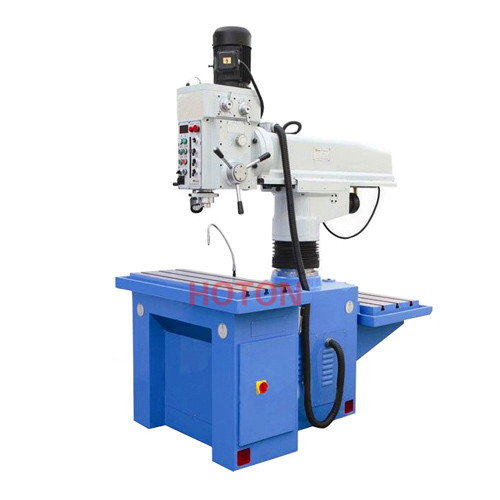

ZX3840
No. :
 |
FEATURES:
Robust, user-oriented, and versatile due to advanced machine design
Upper beam is seated on smooth linear guideways to ensure high-precision bores
Drill head swivels 360º and features an adjustable 180° tilt to allow boring in virtually any position
Heavy-duty 12-gear transmission combined with a powerful drive motor guarantee high torque across the entire speed range
Main transmission and feed gears feature large, hardened and ground gears and shafts
A digital speed indicator shows current rpm and eliminates the need to look up speeds in the speed chart
Quill feed and tapping unit can be enabled via an electromagnetic clutch, and a limit switch allows
adjustment of the depth stop for various boring depths
|
Model |
ZX3840 |
|
Drilling capacity |
40 mm |
|
Tapping capacity, steel |
M35 |
|
Table set up area |
1.200x500 mm |
|
Number of T-slots |
3 |
|
T-slots, width |
18MM |
|
Quill stroke |
200 mm |
|
Spindle nose-to-table surface distance |
750 mm |
|
Column stroke |
320 mm |
|
Column diameter |
220 mm |
|
Upper beam travel |
500 mm |
|
Throat |
900 mm |
|
Speed range Spindle mount |
(12) 38 - 1.730 rpm MK 4 / MT 4 |
|
Feeds |
(3) 0,1 - 0,3 mm/R |
|
Motor rating main drive |
2,2 - 2,8 kW |
|
Motor rating coolant pump |
0,37 kW |
|
Motor rating height adjustment |
1,5 kW |
|
Overall dimensions |
2.060x1.200x2.300 mm |
|
Weight |
2800KGS |
