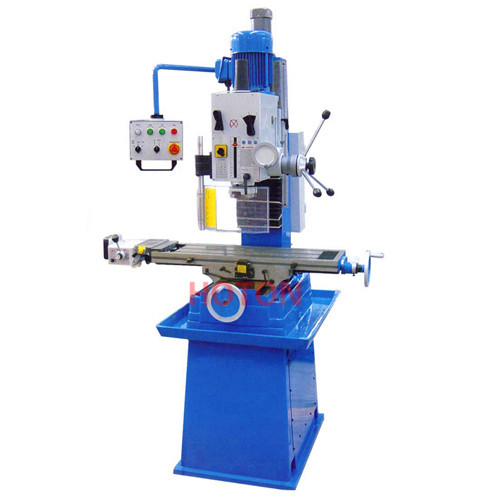

ZX7045

Product Name:

ZX7045

No. :

ZX7045 not the same as ZX45, except that ZX7045 is equipped with Worktable power feed(longitudinal),
Lifting motor with Big Electrical box, 2step motor with 12 steps speed iron casting foot stand and oil pan
which can improve the machining accuracy and producing efficiency.
Milling drilling, tapping, boring, reaming;
Head swivels 360° ;
Micro feed precision;
Super high column, Wide and big table, Gear drive, lower noise.;
Heavy-duty tapered roller bearing spindle, Positive spindle lock, Adjustable gibs on table

Model	ZX7045
Max.drilling capacity(iron/steel)	31.5/45mm
Max.mill capacity(face/end)	80/32mm
Spindle taper	MT3/MT4/R8/ISO30
Worktable size	800×240mm
Worktable travelX/Y	570/230mm
Head tilt left right	90°
Spindle travel	130mm
Spindle nose to worktable	470mm
Spindle center to column surface	285mm
Spindle speeds range(2 steps)	12steps:75-3200r/min
motor	0.85/1.1kw
N.W/G.W	300/350KG
Packing size(L×W×H)	1140×960×2240mm
