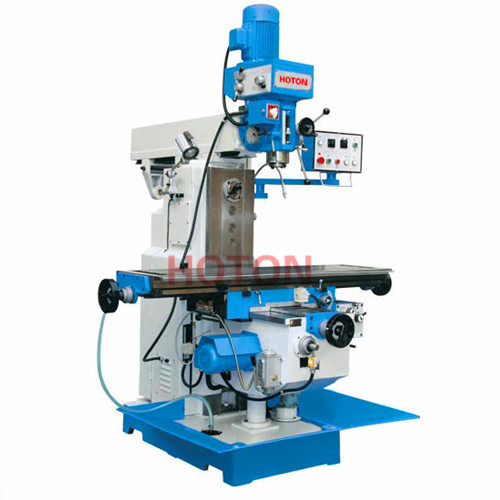

ZX6350A ZX6350B ZX6350Z
|
Product Name:
ZX6350A ZX6350B ZX6350Z
No. :
 |
|
Specification |
ZX6350B |
ZX6350Z |
ZX6350A |
|
Max. drilling diameter |
28mm (manual,cast iron) |
50mm |
50mm |
|
Max.Auto feed drill diameter |
10mm (cast iron) |
14mm (cast iron) |
|
|
Max diameter of vertical mill |
20mm |
|
50mm |
|
Distance from spindle end to table surface |
90-430mm |
180-580mm |
85-460mm |
|
Distance from spindle axis to column surface |
50-550mm |
200-780mm |
200-500mm |
|
Spindle speed range |
80-5440rpm(vertical) 38-1310rpm(horizontal) |
90-2000(vertical) 38-1310rpm(horizontal) |
115-1750rpm(vertical) 40-1300rpm(horizontal) |
|
Spindle travel |
127mm |
120mm |
120mm |
|
Table size |
1500x320mm |
1500x320mm |
1500x320mm |
|
Table travel |
1000x320mm |
1000x300mm |
1000x300mm |
|
Motor power |
3kw(vertical) 2.2kw(horizontal) |
2.2kw |
2.2kw |
|
oversall size |
1710x1720x2330mm |
1710x1720x2330mm |
1710x1720x2330mm |
|
Net weight |
1650/1760kgs |
1650/1760kgs |
1650/1760kgs |
