Product Name:

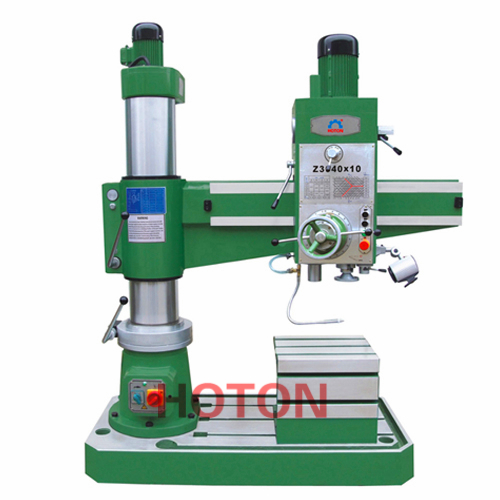

Z3040x10 Z3032x10
No. :
 |
|
Model |
Z3032X10 |
Z3040X10 |
|
Max.drilling capacity (mm) |
32 |
40 |
|
Distance spindle axis to column generating line (mm) |
200-1000 |
|
|
Diameter of column (mm) |
240 |
|
|
Spindle taper |
MT4 |
|
|
Spindle travel (mm) |
250 |
|
|
Spindle speeds range (r/min) |
71-1800 |
|
|
Spindle speeds series |
8 |
|
|
Range of Spindle feeds (mm/r) |
0.13-0.54 |
|
|
Spindle feeds |
4 |
|
|
Distance spindle nose to working surface of base (mm) |
264-1064 |
|
|
Dimension of worktable (mm) |
400X450X400 |
|
|
Dimension of base (mm) |
1500X740X160 |
|
|
Overall size (mm) |
1730X750X2360 |
|
|
Power of Main motor (kw) |
2.2 |
|
|
G.W/NW (kg) |
1600/1530 |
|
|
Packing dimension (cm) |
187X97X220 |
|
