Product Name:

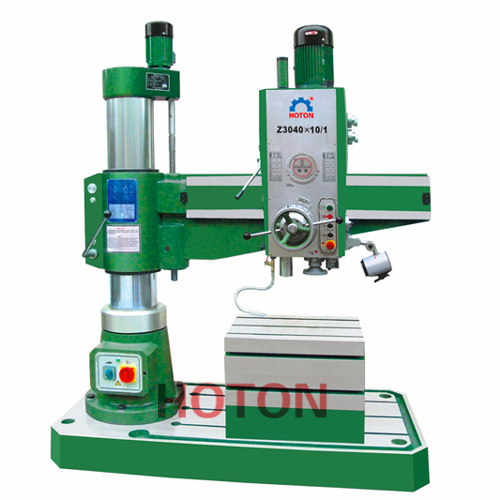

Z3032x10/1 Z3040x10/1 Z3040X13/1
No. :
 |
Integrating technology for casting parts is excellent,adopting casting equipment,ensuring high quality of meteria for basic parts.
Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, nsuring high strength and durability.
Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
|
SPECIFICATION |
|
Z3032X10/1 Z3040X10/1 |
Z3040X13/1 |
|
Max. drilling capacity |
mm |
32/40 |
40 |
|
distance spindle axis to column generating line |
mm |
300-1000 |
300-1300 |
|
diameter of column |
mm |
240 |
300 |
|
Spindle taper |
|
MT4 |
MT4 |
|
Spindle travel |
mm |
280 |
280 |
|
Spindle speeds range |
r/min |
32-2500 |
32-2500 |
|
Spindle speeds series |
|
16 |
16 |
|
Range of spindle feeds |
mm/r |
0.10-1.25 |
0.10-1.25 |
|
Spindle feeds |
|
8 |
8 |
|
Distance spindle nose to woring surface of base |
mm |
220-1000 |
300-1320 |
|
Dimension of worktable |
mm |
600*450*450 |
600*450*450 |
|
Dimension of base |
mm |
1710*800*160 |
2050*900*200 |
|
Overall size |
Mm |
1760*800*2050 |
2100*900*2300 |
|
Power of main motor |
Kw |
2.2 |
3 |
|
G.W/ N.W |
kg |
1920/1830 |
2500/2100 |
|
Packing dimension |
cm |
187*97*220 |
235*106*245 |
