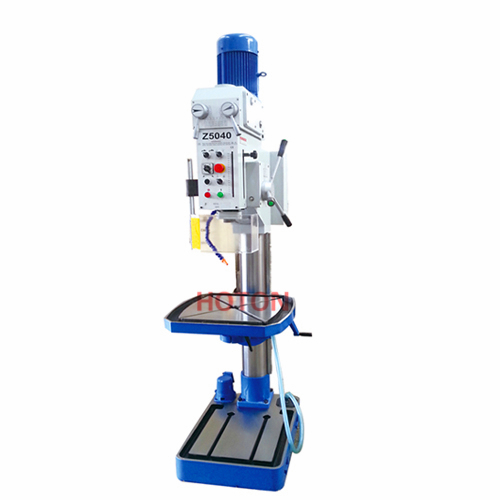

Z5040 Z5040E
|
Product Name:
Z5040 Z5040E
No. :
 |
Drilling, tapping, boring, reaming
Micro feed precision
Super high column,Wide and big table,Gear drive, lower noise
Heavy-duty tapered roller bearing spindle,Positive spindle lock
Micro feed precision
Super high column,Wide and big table,Gear drive, lower noise
Heavy-duty tapered roller bearing spindle,Positive spindle lock
|
Model |
Z5040 (Machinery power feed) |
Z5040E (Electronic power feed) |
|
Max. drilling capacity |
40mm |
|
|
Threading in steel&last iron |
M20&M24 |
|
|
Spindle travel |
180mm |
|
|
Spindle taper |
M.T.#4 |
|
|
Spindle power feed |
2steps/0.1-0.2mm/rev |
|
|
Spindle speed |
50-1450rpm |
|
|
Width of T-slot |
18mm |
|
|
Max.distance from spindle axis to surface of column |
350mm |
|
|
Max.distance from spindle end to surface of table |
770mm |
|
|
Max.distance from spindle end to surface of base |
1210mm |
|
|
Diameter of column |
150mm |
|
|
Table size |
560mmx560mm |
|
|
Base size |
730mmx500mm |
|
|
Motor power |
0.85kw/1.5kw |
|
|
N.W/G.W |
465kg/615kg |
|
|
Packing size(L*W*H) |
2270mmx690mmx1100mm |
|
