Product Name:

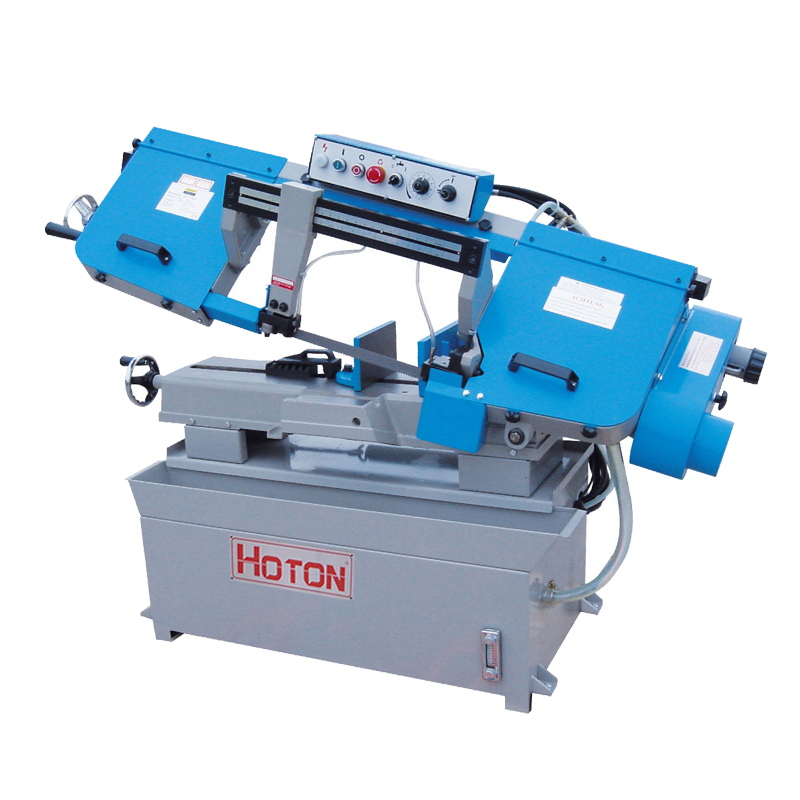

BS916V
No. :
 |
2. Featured in variable speed
3. The quick clamps can be rotated from 0° to 45°
4. High-capacity due to controlled by motor
5. The falling speed of saw bow is controlled by hydraulic cylinder. The base of the roller can be move freely.
6. Has a sizing device (the machine will automatically stop after sawing materials)
7. With power break protection device, machine will power off automatically when the rear protective cover is opened
8. With cooling system, can prolong the service life of saw blade and improve the precision of work piece
9. Equipped with a block feeder (with fixed sawing length)
10.V-belt driven,is infinitely adjustable blade speed through PIV transmission
|
Model |
BS-916V |
|
|
Capacity |
Circular @ 90° |
229mm(9”) |
|
Rectangular @90° |
127x405mm(5”x16”) |
|
|
Circular @45° |
150mm(6”) |
|
|
Rectangular @45° |
150x190mm (6”x7.5”) |
|
|
Blade speed |
@60Hz |
22-122MPM 95-402FPM |
|
@50Hz |
18-102MPM 78-335FPM |
|
|
Blade size |
27x0.9x3035mm |
|
|
Motor power |
1.5kW 2HP(3PH) |
|
|
Drive |
Gear |
|
|
Packing size |
180x77x114cm |
|
|
N.W./G.W. |
300/360kg |
|
