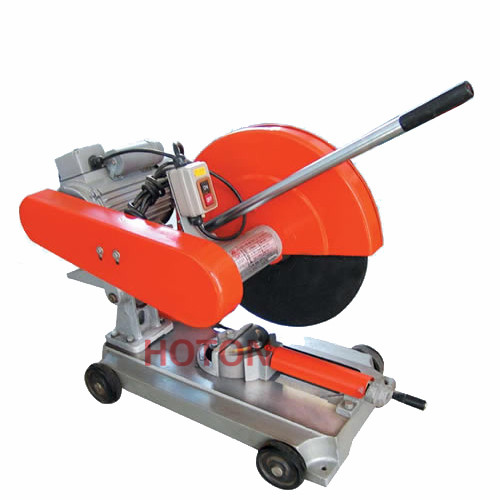

Product Name:
G2210x40B G2210x40A G2210x40C
No. :
 |
Both the body and base use high quality cast iron, strong and everlasting.
The handle can match for special switch, safety and reliable.
There are wheels on base which can moving easily, and using bolts fasten the base enable working more reliable.
Using high quality fiber strengthen grinding flat, safety and reliable.
|
Model |
G2210×40B |
G2210 × 40A |
G2210×40C |
|
|
Motor |
Power (KW) |
2.2 |
2.2 |
3.0 |
|
|
Voltage (V) |
220-240 |
220-240 |
220-240 |
|
|
|
380-415 |
380-415 |
380-415 |
|
Textile fiber enhancement grinding wheel piece |
Specifications |
400×3.2×32 (25.4) |
400 x 3.2 x 32 (25.4) |
400×3.2×32 (25.4) |
|
|
Rated linear velocity (m/s) |
70 |
70 |
70 |
|
Spindle speed (R . P . M) |
2100 |
2800 |
2100 |
|
|
Angle range of jaws(°) |
0-±45 |
0-±45 |
0-±45 |
|
|
Cut-off capability |
Steel pipe(mm) |
Φ100×6 |
Φ100×6 |
Φ100×6 |
|
|
Angle steel(mm) |
100×10 |
100×10 |
100×10 |
|
|
Channel steel(mm) |
100×48 |
100×48 |
100×48 |
|
|
Columnar steel(mm) |
Φ50 |
Φ50 |
Φ50 |
|
N.G./G.W.(kg) |
74/80 |
68/76 |
79/85 |
|
|
Packing dimensions(cm) |
730×460×580 |
730×460×560 |
840×460×580 |
|
