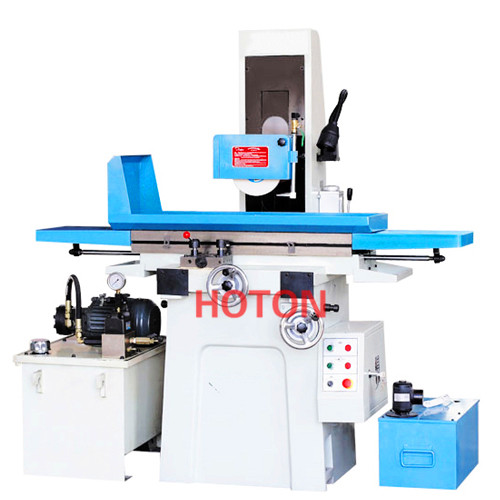

Product Name:
MY820 MY1022 MY1224 MY1230
No. :
 |
1.Hydraulic longitudinal table travel
2.Quality castings and Precision ball bearing supporting the spindle
3.Coolant system with nozzle and flow control valve
4.Cast iron machine body and stand for maximum rigidity and smooth operation
5.Vertical dial graduations 0.01mm
6.Cross travel graduations 0.02mm
7.Manual one shot lubrication pump
8.Wheel balancing stand and arbor
9.Halogen work light
|
Model |
Units |
MY820 |
MY1022 |
MY1224 |
MY1230 |
|
Table Size (LxW) |
mm |
480*220 |
540*250 |
600*300 |
750x300 |
|
( LxW) |
|||||
|
table travel |
mm |
530x220 |
560x260 |
630x320 |
780x320 |
|
speed of working table |
m/min |
3-20 |
|||
|
Distance From Spindle to table |
mm |
450 |
450 |
530 |
530 |
|
Table Slide way |
/ |
V-type rail with Steel-ball |
Double V-type rail |
||
|
V-type rail with Steel-ball |
kg |
200 |
200 |
250 |
250 |
|
Number of T -Slot |
mm*n |
14*1 |
|||
|
Cross Feed On Handwheel |
mm |
0.02/Graduation 2.5/revolution |
0.02/Graduation 4/revolution |
||
|
Vertical Feed On Handwheel |
mm |
0.01/Graduation 1.25/revolution |
0.01/Graduation 2/revolution |
||
|
Wheel Size (dia. Width bore ) |
mm |
200*20*31.75 |
250*25*76.2 |
||
|
wheel Speeds(50HZ) |
rpm |
2850 |
2450 |
||
|
Spindle Motor |
kw |
1.1 |
1.5 |
2.2 |
2.2 |
|
Hydraulic station motor |
kw |
1.5 |
1.5 |
2.2 |
2.2 |
|
Rapid Up and down Motor |
w |
|
120 |
120 |
|
|
Working Pressure |
Mpa |
3 |
3 |
4 |
4 |
|
Max.Capacity |
L/min |
18 |
18 |
20 |
20 |
|
Fuel tank capacity |
L |
80 |
|||
|
Packing Size (LxWxH) |
mm |
1700*1200*1940 |
1300*1620*1900 |
1960*1640*2020 |
1960*1640*2020 |
|
Net,Gross |
kg |
750/850 |
900/1000 |
1300/1430 |
1400/1530 |
