GD-13

Product Name:

GD-13

No. :

drill grinder

Sheet Metal drills 12mm-26mm it has static poit size of the adjustment function can control the quality .

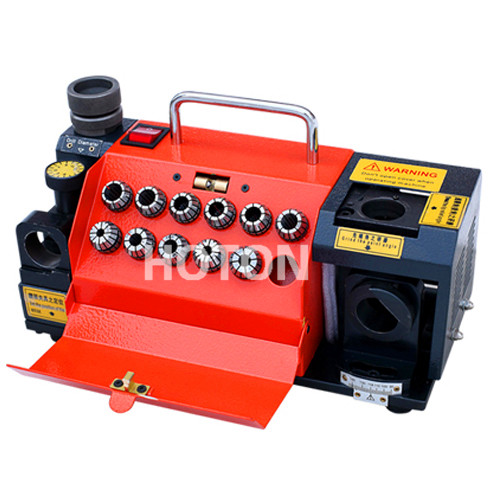

Portable drill bit grinder/Sharpener grinder(GD-13)

1. Easy operate. grinding a drill within 10 seconds. Unskilled workers can learn to sharpen the drill quickly .

2. Grinding all straight shank drill bits with two flutes of unlimited whole length.

3. Economical price, grinding fast and high accuracy.

4. It's a portable sharpener machine ,light and easy carry.

Model	GD-13
Grinding range	Ø3-13
Power	AC220V,50/60Jz
Speed	5300rmp/min
Apex angle	90°-145°
Diamond grinding wheel	CBN230#
Packing size	350200220mm
GW	12kg
Standard accessory
ER holder	1 set
ER collet	Ø2.5-Ø13(11pcs)
Optional Accessory
Grinding wheel (SDC230#)
