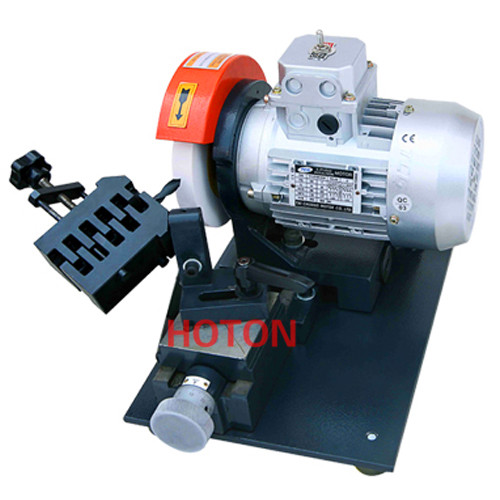

CD-28

Product Name:

CD-28

No. :

Apart from being a special drill grinder it can also be used for grinding other cutters

or crafts by changing kinds of grinding wheels or dressed forms of grinding wheels.

Using a special drill chuck holder, it can grind the drills form 0.8-26mm,one chuck can

hold different-sized .It guarantees the symmetry of the drill's two sides. The angles of

the drill can be adjusted accordingly.

It can grind the central point of the drill.It can also grind the wood working drill bit and

step drill bit, and end mill front edge,which average drill grinders can not accomplish.

You can complete tasks using the same chuck.

It is easy to use.

Specifications	CD-28
Size	400280250mm
Grinding tool diameter	3-28mm
Motor	1/2Hp
The speed of the grinding wheel	3420rpm
Net weight	20kg
Gross Weight	30kg
