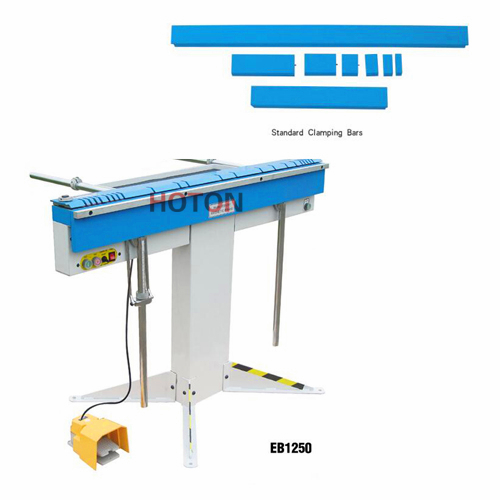

Magnetic Bending Machine EB625 EB1000 EB1250 EB2000 EB2500 EB3200
|
Product Name:
Magnetic Bending Machine EB625 EB1000 EB1250 EB2000 EB2500 EB3200
No. :
 |
Magnetic Bending Machine with foot pedal
Unlimited box depth
Easy raise clamp bar
includes multiple finger length
Magnetic Bending Machine with Magnetic clamping brake
2.Easy raise clamping car.
3.Unlimited box depth.
4.Include multiple finger lengths.
5.Bending stop included.
Unlimited box depth
Easy raise clamp bar
includes multiple finger length
Magnetic Bending Machine with Magnetic clamping brake
2.Easy raise clamping car.
3.Unlimited box depth.
4.Include multiple finger lengths.
5.Bending stop included.
|
Model |
EB625 |
EB1000 |
EB1250 |
EB2000 |
EB2500 |
EB3200 |
|
|
Max.Capacity |
625x1.6mm |
1000x1.6mm |
1250x1.6mm |
2000x1.6mm |
2500x1.6mm |
3200x1.2mm |
|
|
2'x16ga |
3'x16ga |
4'x16ga |
6'x16ga |
8'x16ga |
10'x18ga |
||
|
Clamping force |
3Ton |
4.5Ton |
6Ton |
9Ton |
12Ton |
10Ton |
|
|
Duty cycle |
30% |
30% |
30% |
30% |
30% |
30% |
|
|
Back gauge |
390mm |
640mm |
640mm |
640mm |
640mm |
640mm |
|
|
Foot switch |
NO |
Standard |
|||||
|
Nominal current |
4 Amp |
6Amp |
6Amp |
12Amp |
15Amp |
15Amp |
|
|
Protection |
Thermal cut-out 70°C |
||||||
|
Bending-edge length |
670 |
1050 |
1300 |
2090 |
2590 |
3290 |
|
|
Distance between lifters |
630 |
1010 |
1260mm |
2028 |
2528 |
3228 |
|
|
Packing size(cm) |
83x112x38 |
120x112x38 |
145x112x38 |
220x112x38 |
270x112x38 |
340x112x38 |
|
|
N.W./G.W.(kg) |
102/127 |
142/177 |
175/220 |
290/360 |
330/420 |
400/510 |
|
