ETB12

Product Name:

ETB12

No. :

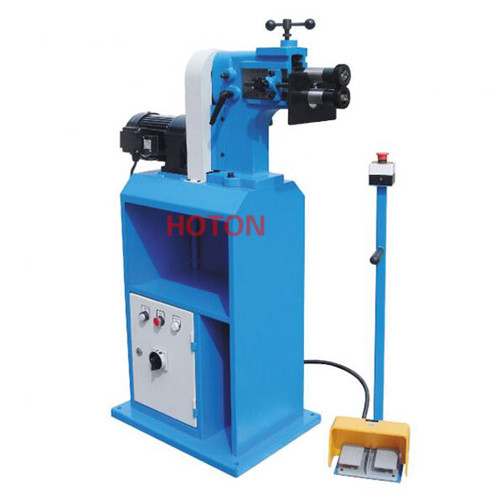

1. The Bead bending machine makes swaged plate, connection and so on of circular pipes,
which refer to crushing the thin plates into the ribs in certain shapes.

2. The rigidity of the plates, pipes or metal components is strengthened.

3. Heavy and solid cast iron construction

4. Special steel adjustable bottom spindle

5. Self braking motor with subframe

6. Easy to operate with foot pedal control

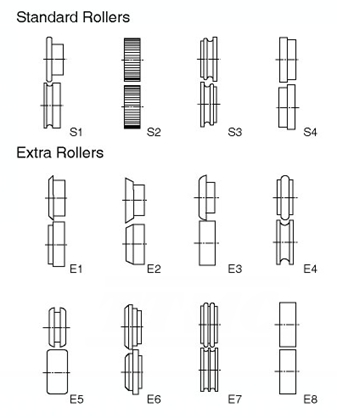

7. 4 sets standard rollers

Model	ETB-12
Thickness max	1.2mm/18Ga
Cylinder length	140mm/ 5-1/2”
Throat depth	200mm / 8”
Cylinder speed	32rpm
Motor power	0.75kW / 1HP
Net weight	120kg/265lb
Packing size (cm)	110x48x148
