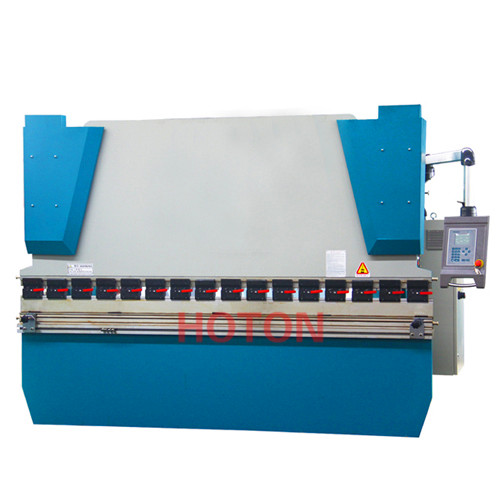

WC67K Series NC Control Press Brake Machine

Product Name:

WC67K Series NC Control Press Brake Machine

No. :

WC67K series torsion bar NC control press brake is fitted with numeric controller.

Multi-steps programming function is able to achieve an automatic operation and continuous
positioning of multi-steps procedures, as well as an automatic precision adjustment for positions
of rear stopper and upper beam.
The machine is provided with bend counting function, real-time display of processing quantity,
power-failure memory of positions of rear stopper, upper beam, programs and parameters.

WC67K Series Technical Parameters:

Type	Nominal Force (KN)	Worktable Length (mm)	Poles Distance (mm)	Throat Depth (mm)	Slider Travel (times/min)	Max Open (mm)	Power (kw)
40T/2200	400	2200	1850	230	100	320	5.5
40T/2500	400	2500	1850	230	100	320	5.5
50T/2500	500	2500	1850	230	100	320	5.5
63T/2500	630	2500	1900	250	100	320	5.5
63T/3200	630	3200	2560	250	100	320	5.5
80T/2500	800	2500	1990	300	100	320	7.5
80T/3200	800	3200	2560	320	100	350	7.5
80T/4000	800	4000	3200	320	100	350	7.5
100T/2500	1000	2500	1900	320	120	350	7.5
100T/3200	1000	3200	2600	320	150	400	7.5
100T/4000	1000	4000	3200	320	150	400	7.5
125T/3200	1250	3200	2600	320	150	400	11
125T/4000	1250	4000	3200	320	150	400	11
160T/3200	1600	3200	2580	320	200	460	11
160T/4000	1600	4000	2900	320	200	460	11
160T/5000	1600	5000	3900	320	200	460	11
160T/6000	1600	6000	4900	320	200	460	11
200T/3200	2000	3200	2480	320	200	460	11
200T/4000	2000	4000	2900	320	200	460	11
200T/5000	2000	5000	3900	320	200	460	11
200T/6000	2000	6000	4900	320	200	460	11
250T/3200	2500	3200	2450	400	250	590	18.5
250T/4000	2500	4000	2900	400	250	590	18.5
250T/5000	2500	5000	3900	400	250	590	18.5
250T/6000	2500	6000	4900	400	250	590	18.5
300T/3200	3000	3200	2450	400	250	590	22
300T/4000	3000	4000	2900	400	250	590	22
300T/5000	3000	5000	3900	400	250	590	22
300T/6000	3000	6000	4900	400	250	590	22
400T/3200	4000	3200	2400	400	250	590	30
400T/4000	4000	4000	2900	400	250	590	30
400T/5000	4000	5000	3900	400	250	590	30
400T/6000	4000	6000	4900	400	250	590	30
500T/5000	5000	5000	3900	400	250	590	45
500T/6000	5000	6000	4900	400	320	590	45
600T/5000	6000	5000	2900	400	320	590	55
600T/6000	6000	6000	4900	400	320	590	55
