Product Name:

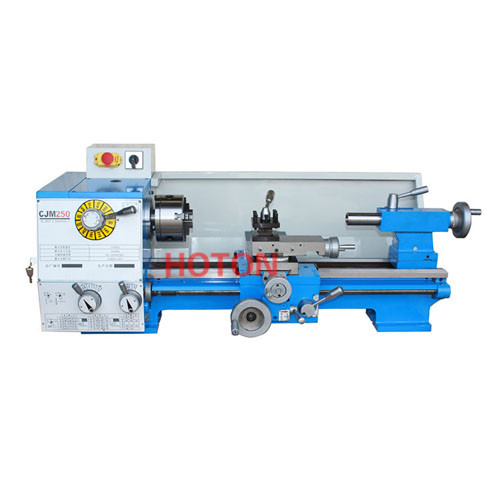

CJM250
No. :
 |
2.Power longitudinal feed allows threading.
3.V-way adapt double triangle and rectangle slide way.
4.Easy access to safety switches.
5.Spindle is supported by precision tapered roller bearing.
6.Headstock be gear drive power.
7.Large MT4 spindle bore.
8.High precision chuck.
9.Induction cuts with cross & longitudinal power feed
|
Specifications |
Units |
CJM250 |
|
Lathe bed maximum turning diameter |
mm |
250 |
|
Skateboard largest workpiece turning diameter |
mm |
500 |
|
Maximum workpiece diameter rotary table |
mm |
150 |
|
Spindle hole diameter |
mm |
26 |
|
Taper of spindle |
mm |
No.4 |
|
Spindle |
mm |
80—1600r/r.p.m 12 |
|
The maximum horizontal stroke of cutter |
mm |
130 |
|
The knife frame maximum longitudinal travel |
mm |
75 |
|
Processing metric thread number |
mm |
15 |
|
Processing range of metric threads |
mm/r |
0.25-2.5 |
|
Longitudinal feed spindle turret at every turn |
mm |
0.03-0.275 |
|
The transverse feed amount per turn spindle turret |
mm |
0.015-0.137 |
|
The maximum amount of movement of the tailstock sleeve |
mm |
60 |
|
Taper the tailstock sleeve |
mm |
No.3 |
|
Electric machinery |
w |
750W/380V/50HZ |
|
Gross / net weight |
kg |
180/163 |
|
Dimensions (length * width * height) |
mm |
1130×550×405 |
|
Packing size (length * width * height) |
mm |
1200×620×600 |
