Product Name:
K11 Three-Jaw Self-Centering Chuck
No. :
 |

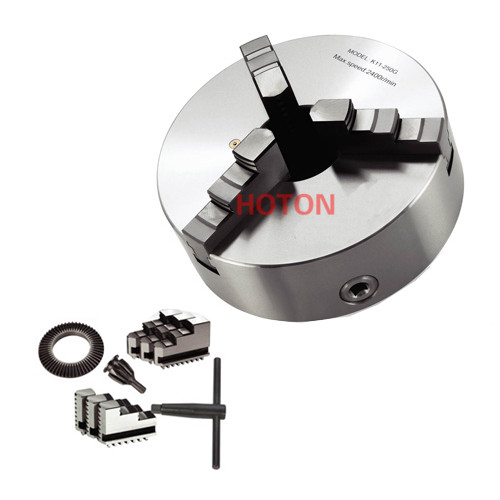

K11 series Three-jaw Self-centering chuck
K11 series Three-jaw Self-centering chuck is subdivided into three types,K11,K11A,Type K11 provides two
sets of clutches in different directions,which can be used respectively.Type K11A provides,ISO3442 standard
clutches.Soft clutches are to be provided on request,higher centering accuracy can be achieved after being rubbed
on the machine,so as to satisfy the need for holding.
|
Model |
D1 |
D2 |
D3 |
H |
H1 |
H2 |
h |
Z-d |
|
Size D |
||||||||
|
K1180 |
55 |
66 |
16 |
66 |
50 |
- |
3.5 |
3-M6 |
|
K11100 |
72 |
84 |
22 |
74.5 |
55 |
- |
3.5 |
3-M8 |
|
K11125 |
95 |
108 |
30 |
84 |
58 |
- |
4 |
3-M8 |
|
K11130 |
100 |
115 |
30 |
86 |
58 |
- |
4 |
3-M8 |
|
K11160 |
130 |
142 |
40 |
95 |
65 |
- |
5 |
3-M8 |
|
K11160A |
142 |
40 |
109 |
65 |
71 |
5 |
3-M8 |
|
|
K11165 |
130 |
145 |
40 |
95 |
65 |
- |
5 |
3-M8 |
|
K11165A |
145 |
40 |
109 |
65 |
71 |
5 |
3-M8 |
|
|
K11190 |
155 |
172 |
55 |
109 |
75 |
- |
5 |
3-M8 |
|
K11190A |
172 |
55 |
122 |
75 |
80 |
5 |
3-M8 |
|
|
K11200 |
165 |
180 |
65 |
109 |
75 |
- |
5 |
3-M8 |
|
K11200A |
180 |
65 |
122 |
75 |
80 |
5 |
3-M8 |
|
|
K11240 |
195 |
215 |
70 |
120 |
80 |
- |
8 |
3-M8 |
|
K11240A |
215 |
70 |
133 |
80 |
85 |
8 |
3-M8 |
|
|
K11250 |
206 |
226 |
80 |
120 |
80 |
- |
5 |
3-M8 |
|
K11250A |
226 |
80 |
133 |
80 |
85 |
5 |
3-M8 |
|
|
K11315 |
260 |
285 |
100 |
142.5 |
90 |
- |
5 |
3-M8 |
|
K11315A |
285 |
100 |
155.5 |
90 |
96.5 |
5 |
3-M8 |
|
|
K11320 |
270 |
290 |
100 |
142.5 |
90 |
- |
5 |
3-M8 |
|
K11320A |
290 |
100 |
155.5 |
90 |
96.5 |
6 |
3-M16 |
|
|
K11325 |
272 |
296 |
100 |
142.5 |
90 |
- |
6 |
3-M16 |
|
K11325A |
296 |
100 |
155.5 |
90 |
96.5 |
6 |
3-M16 |
|
|
K11380 |
325 |
350 |
130 |
155.5 |
100 |
- |
6 |
3-M16 |
|
K11380A |
350 |
130 |
170.5 |
100 |
110.5 |
6 |
3-M16 |
|
|
K11400 |
340 |
368 |
130 |
155.5 |
100 |
- |
6 |
3-M16 |
|
K11400A |
368 |
130 |
170.5 |
100 |
110.5 |
6 |
3-M16 |
|
|
K11500 |
440 |
465 |
200 |
176 |
115 |
- |
6 |
6-M16 |
|
K11500A |
465 |
200 |
203 |
115 |
123 |
6 |
6-M16 |
|
|
K11630A |
560 |
595 |
260 |
218 |
130 |
138 |
7 |
6-M16 |
|
K11800A |
710 |
760 |
385 |
242 |
149 |
159 |
8 |
6-M20 |
|
K11 1000A |
910 |
950 |
460 |
266 |
165 |
- |
8 |
6-M24 |
|
K11 1250A |
910 |
950 |
500 |
281 |
180 |
- |
10 |
6-M24 |
