Product Name:

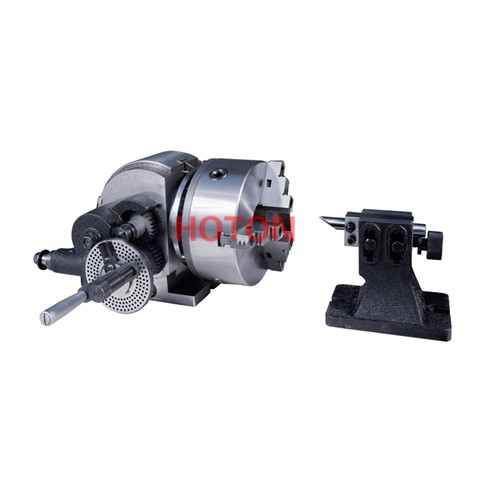

BS Series Semi-Universal Dividing Head
No. :
 |
BS-0 BS-1
Semi-Universal dividing head is a simple index center and can be used for direct and indirect dividing.
Complete the gear, face, flute processing and no need accessories, but the whole construction is the
same as universal type. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing.
Attaches 3 dividing plate along with the dividing head indirect dividing in any division indexing 2-50, 51-380.
Standard accessories:
Dividing plate A, B, C.
Numbers of holes of dividing plate (worm gear reduction ratio 1: 40)
|
Number |
A-Plate |
15,16,17,18,19,20 |
|
B-Plate |
21,23,27,29,31,33 |
|
|
C-Plate |
37,39,41,43,47,49 |
Unit: mm/inches
|
Model No. |
A |
B |
H |
h |
a |
b |
g |
Taper of center |
Diameter of spindle hole |
|
HS-0 |
193 |
131 |
173 |
100 |
166 |
90 |
16 |
MT2 |
18 |
|
7.59 |
5.15 |
6.81 |
3.93 |
6.53 |
3.54 |
0.63 |
0.71 |
||
|
HS-1 |
242 |
168 |
220 |
128 |
206 |
113 |
16 |
MT3 |
20 |
|
9.52 |
6.61 |
8.66 |
5.04 |
8.11 |
4.45 |
0.63 |
0.79 |
Tailstock
Unit: mm/inches
|
Model No. |
A1 |
B1 |
H1 |
h |
a1 |
b1 |
g1 |
|
HS-0 |
175 |
87 |
102 |
100 |
130 |
92 |
16 |
|
6.89 |
3.42 |
4.02 |
3.93 |
5.12 |
3.62 |
0.63 |
|
|
HS-1 |
183 |
87 |
137 |
128 |
158 |
110 |
16 |
|
7.20 |
3.42 |
5.39 |
5.04 |
6.22 |
4.33 |
0.63 |
Optional accessories:
3-jaw chuck
4” or 5” 3-jaw chuck for BS-0
5” or 6” 3-jaw chuck for BS-1
