BS-2 Series Universal Dividing Head

Description:
1. Dividing Head can divide in any angle by the direct, in-direct, or different methods. The ratio between the
warm and the warm gear is 40: 1.
2. Hardened and ground spindle is rigidly held in a taper roller bearing. Worm is hardened and ground also.
3. The swivel head can be locked of any angle from 10degree below horizontal to 90degree vertical-precision fitting
to base assures smooth rotation
4. All models have threaded spindle nose and 24 hole dividing plate with easy conversion to fast direct indexing
on numbers 2, 3, 4, 6, 8, 12, and 24.
5. Easy indexing of al numbers from 2 to 50 and many numbers from 52 of 380. Model BS-2 is also equipped for different
indexing for all numbers from 2 to 380, and for spiral cutting.
6. Accurate precision, little backlash, fine appearance and strong structure so can assure smooth rotation.

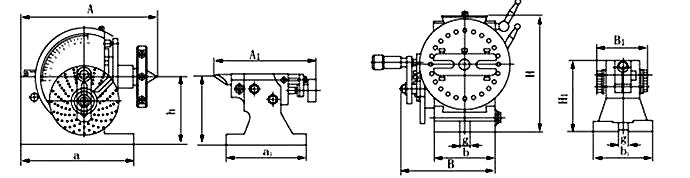

Head Stock                                                                      Unit:mm/in

Tail-stock                                                              Unit:mm/in

STANDARD ACCESSORIES

Dividing plate A,B,C

Number of holes of dividing plate(worm gear reduction radio 1:40)

                                                                             Unit:mm
