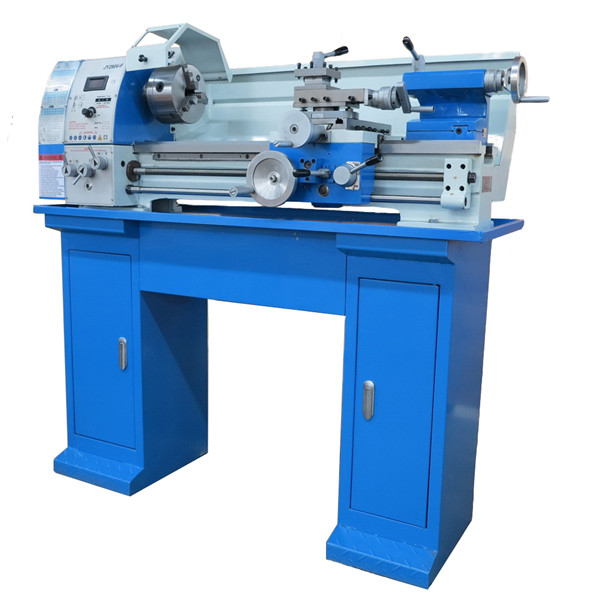

JY290VF
|
Product Name:
JY290VF
No. :
 |
Hardened and ground bed way.
Large bore (38mm) spindle supported on taper roller bearing.
Independent leadscrew and feed shaft.
Power cross feed function.
Automatic feed and threading are fully interlocked.
T-slotted cross slide.
Right & left hand threads cutting is available.
Tailstock can be off set for turning tapers.
Tolerance test certificate, test flow chart included.
|
Model
|
JY290VF
|
|
Distance between centers
|
700mm
|
|
Swing over bed
|
280mm
|
|
Swing over cross slide
|
165mm
|
|
Width of bed
|
180mm
|
|
Taper of spindle bore
|
MT5
|
|
Spindle bore
|
38mm
|
|
Number of spindle speeds
|
variable speed
|
|
Range of spindle speeds
|
50-1800rpm
|
|
Range of longitudinal feeds
|
0.07 -0.40mm /r
|
|
Range of inch threads
|
8-56T.P.I 21kinds
|
|
Range of metric threads
|
0.2 -3.5mm 18kinds
|
|
Top slide travel
|
80mm
|
|
Cross slide travel
|
165mm
|
|
Tailstock quill travel
|
80mm
|
|
Taper of tailstock quill
|
MT3
|
|
Motor
|
1.1KW
|
|
Packing size
|
1400 × 700 × 680mm
|
|
Net /Gross weight
|
220kg/270kg
|
