XC Series Vertical Milling Head
No. :
 |
The XC series vertical milling head has a upright rotatory plane , it is mainly used vertical milling ,
it can assist machine tool to produce different angles ,plane,adge and groove , spindles have strong
rigid and high transfer power , it has an important accessory for expanding area of horizontal down-up milling machine
|
Specification |
taper of spindle bore |
Matched Milling machine type |
Rate of milling machine transfer |
Taper with spindle of milling machine |
|
XC57-32B |
7:24(44.45) |
X57-3 |
1:1.5 |
Morse scale 3 |
|
XC602B |
X60 X60W |
1:1 |
7:24 (φ44.45) |
|
|
XC612B |
X61 X61W X6130A |
|||
|
XC612C |
X6130 X6130A |
|||
|
XC622B |
X62 X62W X6132 |
7:24 (φ69.85) |
||
|
XC622C |
X6132A |
|||
|
XC632B |
X63 X63W B400W |
|||
|
XC632C |
X6040 X6140 |
|||
|
XC63T2B |
X63T X63WT |
|||
|
XC632BZ |
7:24(φ69.85) |
X63 X63W B400W |
||
|
XC632CZ |
X6040 X6140 |
|||
|
XC642CZ |
FX6045 FX6145 |
|||
|
C3150X400L-1A |
X6140A |
|||
|
C3140X300L-1A |
7:24(φ44.45) |
X6130T |
|
Item Model |
A |
B |
C |
D |
E |
F |
a |
GW KG |

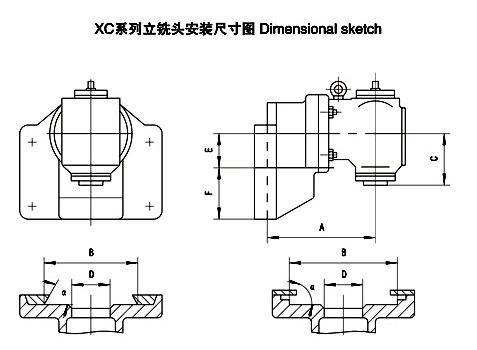

Case dimension mm |
|
XC57-32B |
255 |
192 |
137 |
φ134 |
133 |
75 |
60° |
76 |
430x410x415 |
|
XC602B |
265 |
250 |
φ152 |
95 |
102 |
55° |
82 |
440x435x405 |
|
|
XC612B |
254 |
280 |
φ190 |
110 |
50° |
84 |
430x465x420 |
||
|
XC612C |
300 |
φ130 |
120 |
90° |
88 |
440x480x420 |
|||
|
XC622B |
360 |
320 |
155 |
φ165 |
133 |
112 |
55° |
150 |
575x520x475 |
|
XC622C |
340 |
φ170 |
90° |
155 |
575x530x475 |
||||
|
XC632B |
370 |
400 |
φ165 |
55° |
158 |
585x600x475 |
|||
|
XC632C |
φ170 |
90° |
168 |
595x605x475 |
|||||
|
XC63T2B |
|
360 |
φ210 |
50° |
160 |
585x575x475 |
|||
|
XC632BZ |
400 |
400 |
170 |
φ165 |
150 |
55° |
234 |
635x600x545 |
|
|
XC632CZ |
φ170 |
90° |
244 |
640x600x545 |
|||||
|
XC642CZ |
470 |
500 |
φ260 |
160 |
274 |
710x700x555 |
|||
|
C3150X400L-1A |
400 |
420 |
|
φ218 |
150 |
|
246 |
640x625x545 |
|
|
C3140X300L-1A |
254 |
300 |
137 |
φ168 |
110 |
102 |
88 |
440x480x420 |
