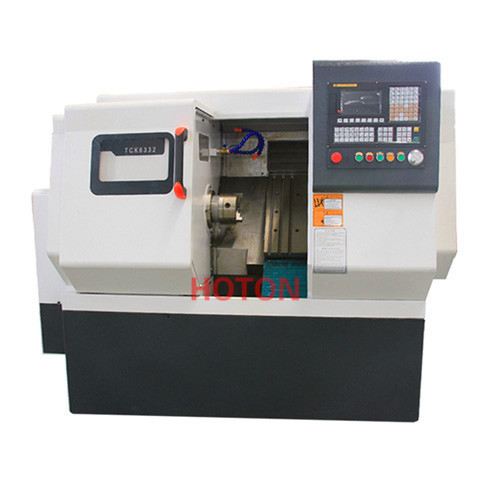

Product Name:
TCK6336 TCK6340 TCK6350
No. :
 |
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
|
Standard Accessories |
Optional Accessories |
|
GSK980TDC or Siemens 808D NC system Servo motor 3.7 kw 4 station gang type tool post 6" domestic thru-hole type hydraulic chuck |
NC System:KND1000Ti, Fanuc Oi Mate-T Main Motor: Servo5.5/7.5KW Inverter 7.5KW Turret: 4 station electric turret , 6 station electric turret Chuck:6″Non-through hole hydraulic chuck 8″Non-through hole hydraulic chuck (Taiwan) 8″through hole hydraulic chuck(Taiwan) Chip conveyor Steady Rest Other optional item: Driving tool turret, automatic feeding device and manipulator. |
|
Specification |
Unit |
TCK6336(S) |
TCK6340 |
TCK6350 |
|
Max. swing over bed |
mm |
Φ390 |
Φ400 |
Φ520 |
|
Max. swing over cross slide |
mm |
Φ130 |
Φ120 |
Φ220 |
|
Max. processing length |
mm |
200(400 optional ) |
300 |
410( gang tool)/ 530 (turret) |
|
X/Z axis travel |
mm |
400/300(500 optional) |
380/350 |
500/500 |
|
Spindle unit |
mm |
140(170 optional) |
170 |
200 |
|
Spindle nose |
|
A2-5(A2-6 |
A2-5(A2-6 optional) |
A2-6(A2-8 optional) |
|
Spindle bore |
mm |
48(56 optional) |
56 |
66 |
|
Spindle drawing pipe diameter |
mm |
40(45 optional) |
45 |
55 |
|
Spindle speed |
rpm |
4000/3500 |
3500 |
3000 |
|
Chuck size |
inch |
6/8 |
6/8 |
10 |
|
Spindle motor |
kw |
3.7/5.5 |
5.5 |
7.5/11 |
|
X/Z feed motor power |
kw |
1.5 |
6/6 |
7.5/7.5 |
|
X/Z feed motor torque |
N.m |
6/6 |
1.5 |
1.88 |
|
X/Z position accuracy |
mm |
0.016/0.016 |
0.016/0.016 |
0.02/0.02 |
|
X/Z repeatability |
mm |
0.006/0.006 |
0.006/0.006 |
0.006/0.006 |
|
X/Z rapid feed speed |
m/min |
18/15(18/18 optional) |
18/18 |
18/18 |
|
Cutting tool shape size |
mm |
20*20 |
Taiwan linear guide way |
Taiwan linear guide way |
|
Total power capacity |
kva |
9/11 |
9/11 |
14/18 |
|
Guide type |
|
Taiwan linear guide way |
20*20 |
25*25 |
|
Machine dimension (L*W*H) |
mm |
2200(2500 optional) ×1340×1710 |
2500*1340*1710 |
2550*1400*1710 |
|
N.W. |
KG |
2200(2500 optional |
2500 |
2900 |
