Product Name:

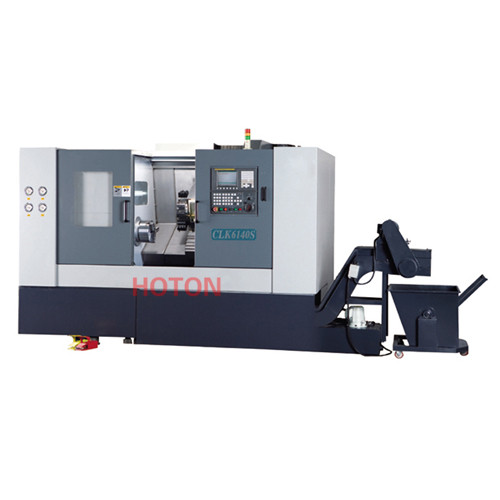

CLK6140S CLK6150S
No. :
 |
30°slant bed
3-jaw hydraulic chuck and soft jaw
X/Z axis linear rolling guide
High speed spindle unit
10--position hydraulic turret
Automatic lubrication system
Chain auto chip conveyor and scrap iron car
l FAUNC Oi mate-TC CNC system servo spindle
Optional Accessories:
GSK980TD/HNC-21TD/KND-1000T
Spindle frequency conversion speed
Manual chip removal
Elastic tube collet and collet.
|
Specification |
UNIT |
CLK6140S |
CLK6150S |
|
Max.swing over bed |
mm |
Φ540 |
Φ700 |
|
Max.swing over carriage |
mm |
Φ270 |
Φ380 |
|
Max.workpiece length |
mm |
550 |
600 |
|
X axis travel |
mm |
220 |
245 |
|
Y axis travel |
mm |
660 |
600 |
|
Positioning accuracy of X/Y/Z axis |
mm |
0.012 |
X:0.012;Z:0.02 |
|
Re-positioning accuracy of X/Y/Z axis |
mm |
0.006 |
X:0.007;Z:0.008 |
|
X,Z rapid feeding |
m/min |
12/16 |
30/30 |
|
Hydraulic pressure chuck |
|
8″ |
10″ |
|
Tool numbers |
|
10 |
12 |
|
Main motor power |
kw |
7.5 |
18.5-22 |
|
Max.spindle speed |
r/min |
4000 |
4000 |
|
Spindle bore |
mm |
Φ52 |
Φ86 |
|
Overall dimension |
mm |
2720×1580×1870 |
3600×2000×1950 |
|
Net weight |
kg |
3500 |
7000 |
