Tapping Drilling S4012 S4016
|
Product Name:
Tapping Drilling S4012 S4016
No. :
 |

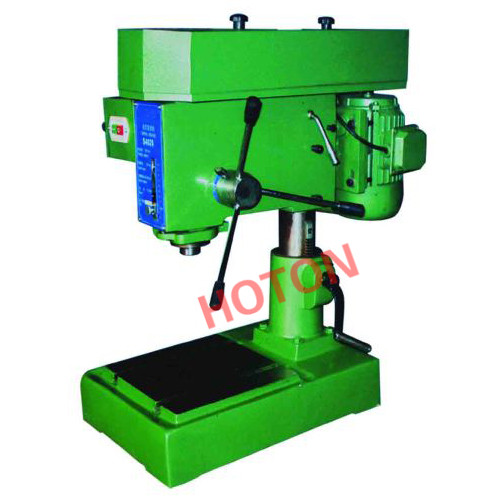

DESCRIPTION OF TAPPING DRILLING MACHINE
Multi-functional, can use for drilling and tapping.
Spindle head, worktable, column and base use high quality casting processed by aging treatment, stability and durable in use.
Spindle, spline sleeve, gear shaft processed by heat treatment and hardened.
Reasonable structure, high rigidity, high strength.
|
MODEL |
S4012 |
S4016 |
S4024 |
S4028 |
S4020 |
|
Max. tapping capacity (In MS) |
12 |
16 |
24 |
28 |
20 |
|
Spindle travel |
85 |
85 |
115 |
130 |
85 |
|
Distance from spindle to column |
270 |
270 |
275 |
400 |
270 |
|
Motor power |
0.55 |
0.75 |
1.1 |
1.5 |
0.75 |
|
Approx.net weight |
110 |
120 |
200 |
260 |
150 |
