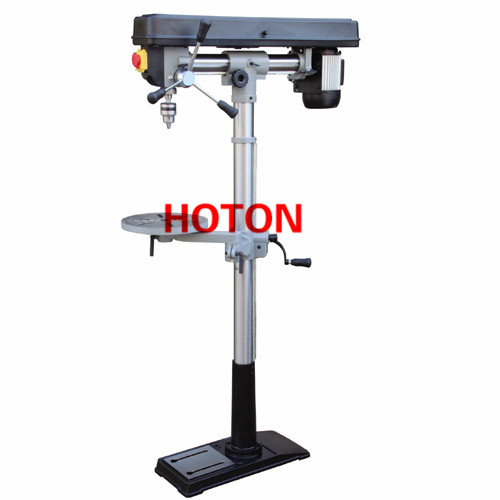

Radial Drill ZJY5116
|
Product Name:
Radial Drill ZJY5116
No. :
 |
ZJY4116/5116 SMALL BENCH DRILLING MILLING
1.Multi-function drilling and milling machine
2.Three axis hardened treatment Gear
3.transmission milling head
4.Universal milling head,machining flexibility
5.X axis mechanical feed,Y.Z axis can be added the device
6.Gear transmission milling head
|
MODEL |
ZJY4116 |
ZJY5116 |
|
Motor Power |
375W |
375W |
|
Chuck |
16mm |
16mm |
|
Spindle Travel |
65mm |
65mm |
|
Spindle Taper |
MT2 |
MT2 |
|
Speed Change |
12 |
12 |
|
Speed 50/60Hz |
300-2550/360-3060 r/min |
300-2550/360-3060 r/min |
|
Swing |
260-780mm |
260-780mm |
|
Working Table |
F260mm |
F290mm |
|
Base |
560x250mm |
560x250mm |
|
Column |
F58mm |
F72mm |
|
Total Height |
800mm |
1560mm |
|
Weight |
43/41kg |
58/55kg |
|
Packing Dimensions |
880x440x280mm |
1100x440x280mm |
