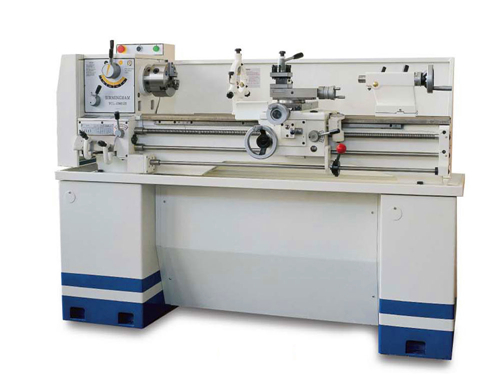

C06230A

Product Name:

C06230A

No. :

Precision ground and hardened bed ways
The spindle is supported with precision roller bearings
Headstock gears are made of high quality steel ground and hardened
Easy operating speed change levers
Removable gap is provided for larger diameter work
Easy operating gear box has various feeds and thread cutting function
With or without foot stand for optional

Model	C06230A
Max.swing over bed	300mm
Max.swing over gap	430mm
Max.length of work piece	914mm
Max.length of turning	760mm
Hole through Spindle	38mm
Taper of spindle bore	MT5
Range of spindle speeds(9 steps)	60-1500r.p.m.
Taper of quill sleeve	MT3
Metric threads can be cut (29 kinds)	0.2-4.5mm
Inch threads can be cut (40 kinds)	4-112T.P.I.
Pitches of three feed leadscrews	8T.P.I.
Longitudinal feed per revolution of spindle(40 kinds)	0.028-0.791mm/rev
Cross feed per revolution of spindle(40 kinds)	0.010-0.268mm/rev
Max.longitudinal travel of saddle	800mm
Max.travel of cross slide	175mm
Max.travel of top slide	95mm
Max.travel of tailstock sleeve	100mm
Motor horse power	1.5HP(1.1KW)
Motor frequency	60Hz or 50Hz
Overall dimensions(LxWxH)	1700x75x1270mm
Net weight	420kg
