Product Name:

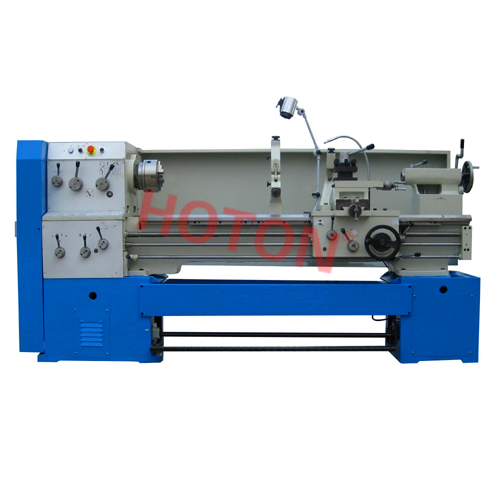

Gap Bed Lathe CC Series
No. :
 |
Guideways ultrasonic frequency quenched to ensure a long service life.
Guideways ground to ensure high accuracy.
Spindle bore 52mm and the spindle nose conforms to ISO-C6.
Gears in headstock precisely ground to reduce noise.
Feeding box well sealed to eliminate leakage.
Kinds of threads.
Tailstock locked by thread or camlock.
Electric system is reliable and safe.
Electromagnetic brake at users option.
|
MODEL |
C6236C |
C6240C |
C6250C |
|
Max. swing over bed |
360mm |
400mm |
500mm |
|
Max. swing over cross slide |
190mm |
230mm |
330mm |
|
Max. swing over gap |
520mm |
560mm |
660mm |
|
Effective length of gap |
200mm |
||
|
Center Distance |
750, 1000, 1500mm |
||
|
Bed Width |
360mm |
||
|
Spindle hole |
52mm |
||
|
Spindle nose |
ISO-C6 |
||
|
Spindle taper |
MT6 |
||
|
Spindle speed(Number) |
(9steps)40-1400rpm |
||
|
Metric threads range |
18kinds 0.5-14mm |
||
|
Inch threads range |
27kinds 2-40inch |
||
|
Moudle threads range |
11kinds 0.25-3.5mπ |
||
|
Max. travel of top slide |
95mm |
||
|
Max. travel of cross slide |
180mm |
230mm |
|
|
Max. size of toolshank |
20*20mm 2 |
||
|
Dia. of tailstock sleeve |
65mm |
||
|
Taper of tailstock sleeve |
MT4 |
||
|
Max. travel of tailstock |
140mm |
||
|
Main drive motor |
4 or 5.5KW |
||
|
Coolant pump motor |
125W |
||
|
750mm |
225*115*165cm |
||
|
1000mm |
245*115*165cm |
||
|
1500mm |
288*115*165cm |
||
|
750mm |
1350/1750kg |
1400/1800kg |
1500/1900kg |
|
1000mm |
1450/1850kg |
1500/1900kg |
1600/2000kg |
|
1500mm |
1600/2000kg |
1650/2050kg |
1750/2150kg |
