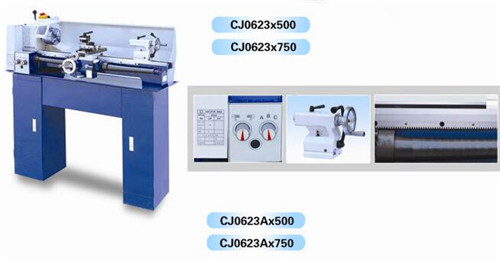

CJ0623A&CJ0623B

Product Name:

CJ0623A&CJ0623B

No. :

1, This precision mini lathe is designed to perform various tapes of processing jobs.
Counterface turning, drilling, boring, threading, and cutting jobs on materials made up of round bar
and bar materials can be performed with this machine. This machine can be used in areas such as mini
precision parts processing, sample processing and modeling works. This machine AC Motor drived.
2, This machine AC motor drived.
3, The spindle speed: 100, 250, 350, 500, 900, 1800RPM(50HZ)120, 300, 420, 600,
1080, 2160RPM(60HZ)
4, The feed speed can be adjusted according to the requirements of different workpieces.

Model	CJ0623A	CJ0623B
Distance between centers	500/750mm	500/750mm
Swing over bed	230mm	230mm
Swing over cross slide	135mm	135mm
Spindle taper	MT3	MT3
Tailstock taper	MT2	MT2
Chuck diameter	100mm	100mm
Spindle bore	20mm	20mm
Cross slide travel	125mm	125mm
Tool slide travel	48mm	48mm
Range of metric threads	0.5-3mm	0.5-3mm
Range of imperial threads	8-56TPI	8-56TPI
Spindle accuracy	0.01mm	0.01mm
Spindle speed	100-1800RPM(50Hz)/120-2160RPM(60Hz)	50-3000RPM
Power of motor	750W	1200W
Voltage/Frequency	230V/50Hz or 120V/60Hz	230V/50Hz or 120V/60Hz
Net weight /Gross weight	105Kg/135Kg 120Kg/150Kg	105Kg/135Kg 120Kg/150Kg
Packing size	1055/1300x565×575mm	1055/1300×565×575mm
