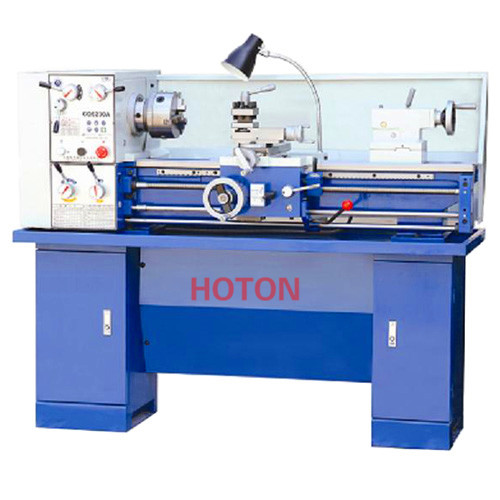

CQ6230,CQ6230A-1 & CQ6230A-2
|
Product Name:
CQ6230,CQ6230A-1 & CQ6230A-2
No. :
 |
Precision ground and supersonic frequency hardened bed ways.
The spindle is supported with precision roller bearing.
The spindle is supported with precision roller bearing.
|
Model
|
CQ6230A
|
CQ6230A-1
|
CQ6230A-2
|
|
Max.swing over bed
|
Φ310mm
|
||
|
Max.swing over cross slide
|
Φ180mm
|
||
|
Max. swing over gap
|
Φ450mm
|
||
|
Distance between centers
|
750mm/910mm
|
||
|
Width of bed
|
181mm
|
||
|
Spindle bore
|
Φ38mm
|
||
|
Taper of spindle bore
|
M.T.#5
|
||
|
Range of spindle speeds
|
65-1810(1400)rpm
|
||
|
Taper of tailstock
|
M.T.#3
|
||
|
Metric threads can be cut
|
0.4-7mm
|
||
|
Inch threads can be cut
|
4-60 T.P.I.
|
||
|
Range of longitudinal feeds
|
0.0527-1.2912mm/rev
|
||
|
Range of cross feeds
|
0.011-0.276mm/rev
|
||
|
Max. travel of cross slide
|
130mm
|
||
|
Max. travel of top slide
|
75mm
|
||
|
Max. travel of tailstock quill
|
100mm
|
||
|
Motor power
|
1.1KW.3PH/1.5KW.1PH
|
||
