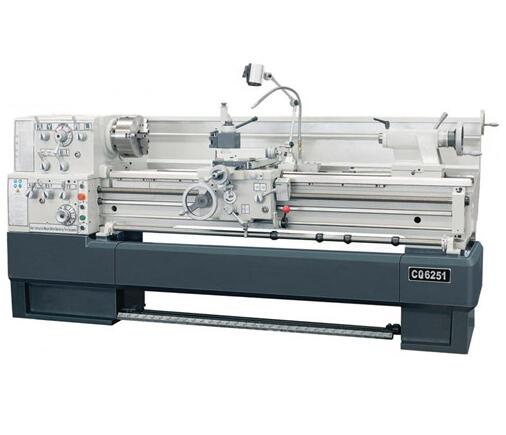

Product Name:
C6251 C6251V C6256 C6256V
No. :
 |
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train, high rotating accuracy and smooth running with low noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included
|
Specification |
Models |
|||||||||||||||||
|
C6251 |
C6251V |
C6256 |
C6256V |
|||||||||||||||
|
CAPACITY |
||||||||||||||||||
|
Processing length |
1000/1500/2000/3000 |
|||||||||||||||||
|
Swing over red |
510mm(20") |
560mm(22") |
||||||||||||||||
|
Swing over cross slide |
305mm(11-7/8") |
355mm(13-3/4") |
||||||||||||||||
|
Swing in gap diameter |
735mm(29") |
785mm(31") |
||||||||||||||||
|
Valid length of gap |
200mm(8") |
|||||||||||||||||
|
Distance between centers |
1000 |
1500 |
200 |
3000 |
1000 |
1500 |
2000 |
3000 |
||||||||||
|
Center height |
1135mm |
1160mm |
||||||||||||||||
|
Width of bed |
350mm(13-3/4") |
|||||||||||||||||
|
HEADSTOCK |
||||||||||||||||||
|
Spindle nose |
D1-8 |
|||||||||||||||||
|
Spindle bore |
80mm(3-1/8") |
|||||||||||||||||
|
Taper of spindle bore |
No.7Morse |
|||||||||||||||||
|
Range of spindle speed |
12changes 25-1600r/min |
25～1600r/min （variable） |
12changes 25-1600r/min |
25～1600r/min （variable） |
||||||||||||||
|
FEEDS AND THREADS |
||||||||||||||||||
|
Compound rest travel |
130mm(5-1/8") |
|||||||||||||||||
|
Cross slide travel |
316mm(12-15/16") |
|||||||||||||||||
|
Lead screw thread |
6mm or 4T.P.I |
|||||||||||||||||
|
Max. section of tool |
25×25mm(1×1") |
|||||||||||||||||
|
Longitudinal feeds range |
35 kinds 0.059-1.646mm/rev (0.0022"-0.0612"/rev) |
|||||||||||||||||
|
Cross feeds range |
35 kinds 0.020-0.573mm/rev (0.00048"-0.01354"/rev) |
|||||||||||||||||
|
Threads metric pitches |
47 kinds 0.2-14mm |
|||||||||||||||||
|
Threads imperial pitches |
60 kinds 2-112T.P.I |
|||||||||||||||||
|
Threads diametral pitches |
50 kinds 4-112D.P. |
|||||||||||||||||
|
Threads module pitches |
39 kinds 0.1-7M.P. |
|||||||||||||||||
|
TALLSTOCK |
||||||||||||||||||
|
Quill diameter |
75mm(3") |
|||||||||||||||||
|
Quill travel |
180mm(7") |
|||||||||||||||||
|
Quill taper |
No.5Morse |
|||||||||||||||||
|
Cross adjustment |
±13mm(±1/2") |
|||||||||||||||||
|
MOTOR |
||||||||||||||||||
|
Main motor power |
7.5kW(10HP)3PH |
|||||||||||||||||
|
Coolant pump power |
0.1kW(1/8HP),3PH |
|||||||||||||||||
|
DIMENSION AND WEIGHT |
||||||||||||||||||
|
Overall dimension(L×W×H) (cm) |
239×115×143 |
284×115×143 |
334×115×143 |
434×115×143 |
239×115×146 |
284×115×146 |
334×115×146 |
434×115×146 |
||||||||||
|
Packing size(L×W×H) (cm) |
245×115×174 |
290×115×174 |
340×115×174 |
440×115×174 |
245×115×174 |
290×115×174 |
340×115×174 |
440×115×174 |
||||||||||
|
Net weight/Gross weight (kg) |
2035/2415 |
2160/2550 |
2435/2840 |
2805/3270 |
2160/2555 |
2285/2690 |
2560/2980 |
2930/3410 |
||||||||||
